Opis

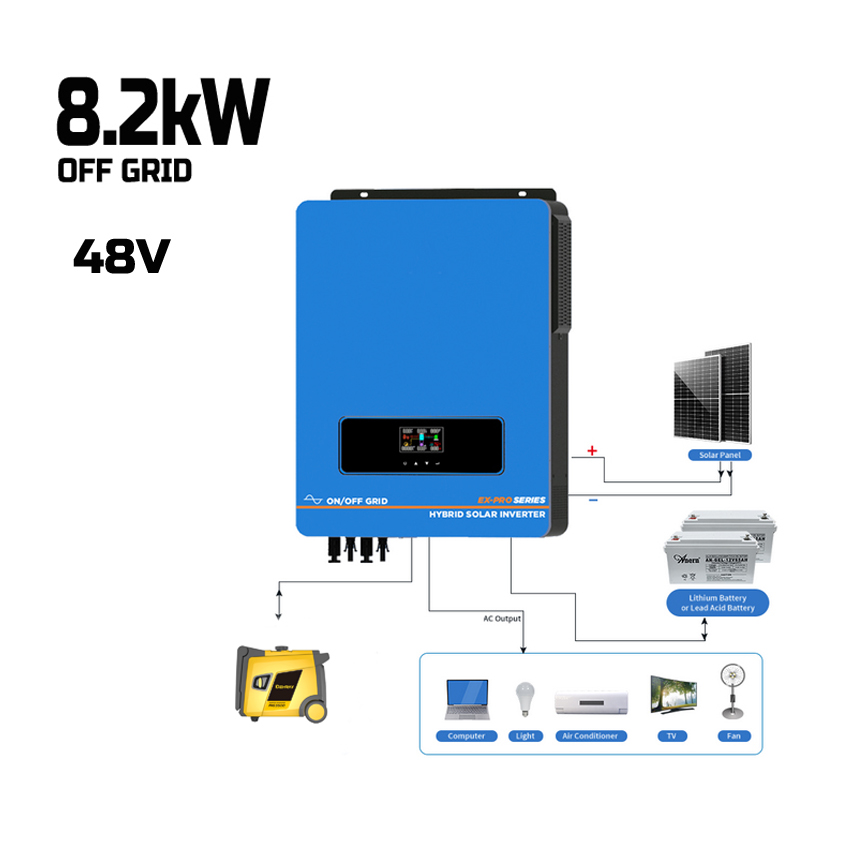

ANERN – HIBRIDNI inverter sa MPPT regulatorom i punjaćem.
Oznaka modela: EX-Pro 8200, 48V
Rated Power： 8200W
Maximum Solar Charging Current： 160A
GRID-TIE OPERATION
Nominal DC Voltage/Maximum DC Voltage： 360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage： 90VDC/120VDC
MPPT Voltage Range：90V-450VDC
Number of MPPT Trackers/Maximum Input Current：1/27A
Output Voltage Range：195-253VAC
OFF-GRID OPERATION
AC Start-up Voltage/Auto Restart Voltage ：120-140VAC/180VAC
Acceptable Input Voltage Range ：90-280VAC or 170-280VAC
Nominal Operating Frequency ：50/60Hz
Surge Power：16400W
